Disgrifiad o'r Cynnyrch
Daliwr offer anhyblygrwydd uchel wedi'i gynllunio ar gyfer gosod mewnosodiadau dril Q, sy'n gwasanaethu fel elfen graidd systemau drilio effeithlon.
Nodweddion Ein Cynhyrchion
1. Anhyblygrwydd Uchel: Yn sicrhau sefydlogrwydd a gwrthiant dirgryniad yn ystod drilio cyflymder uchel.
2. Rhyngwyneb Precision: Mae sedd fewnosod wedi'i pheiriannu'n gywir yn gwarantu lleoliad manwl gywir o fewnosodiadau torri.
3. Wedi'i Gynnwys-Yn Oeri: Yn cefnogi cyflenwad oerydd mewnol ar gyfer rheoli tymheredd yn effeithiol a gwellhad mewn gwacáu sglodion.
4. Cydnawsedd Tapr Aml-: Ar gael mewn manylebau tapr safonol amrywiol.

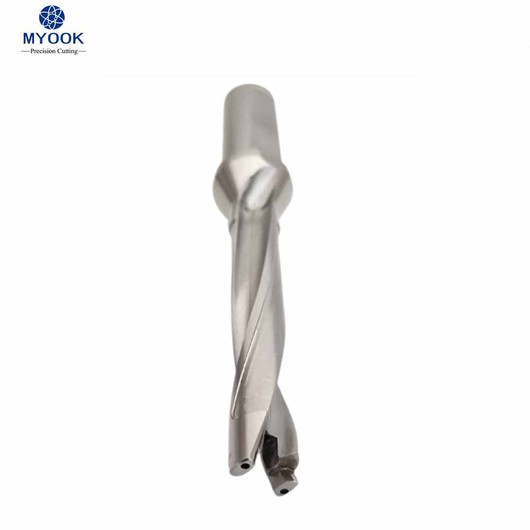

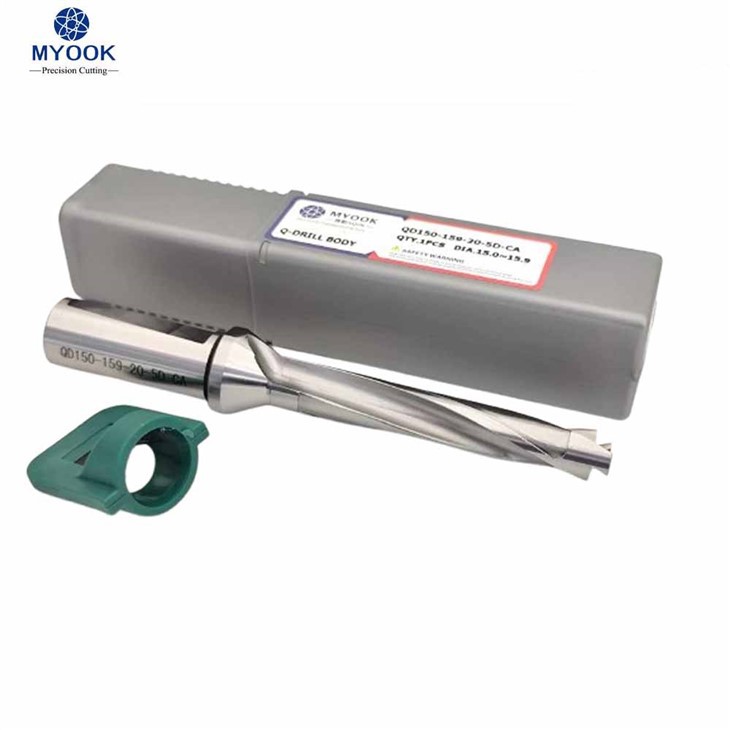

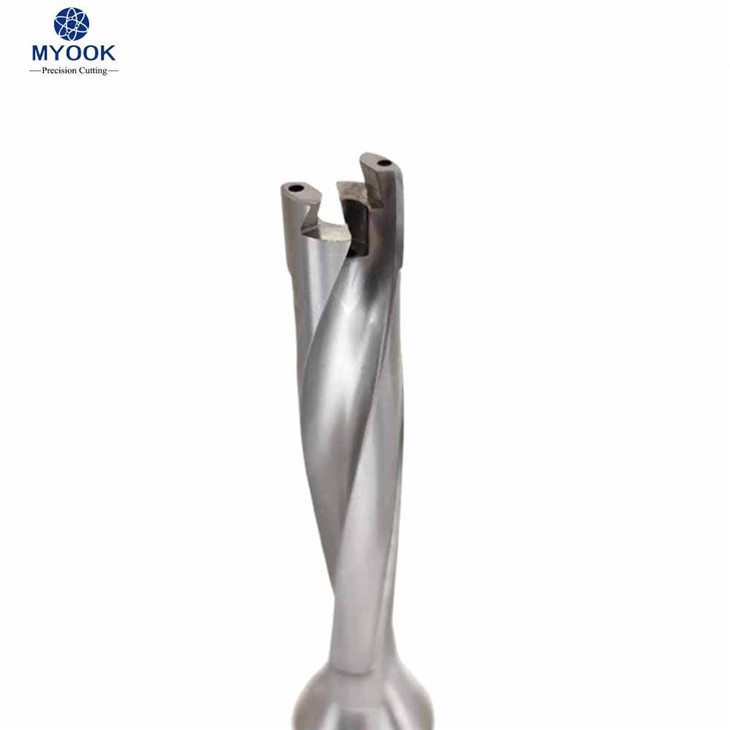

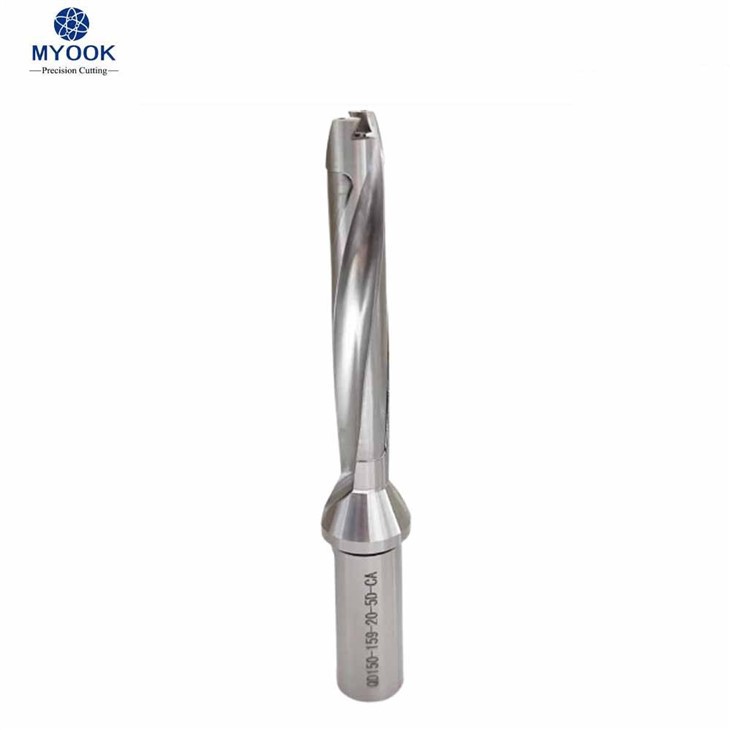

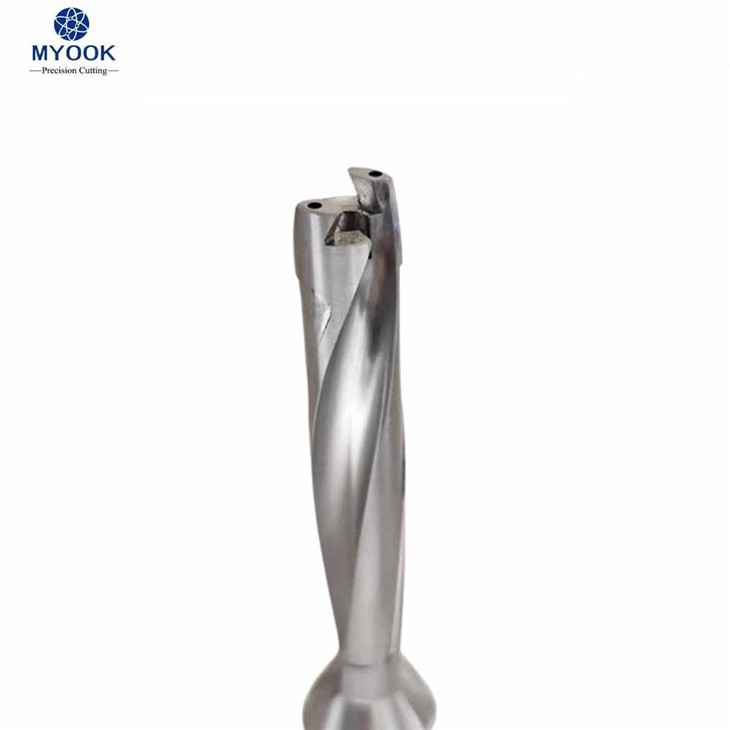

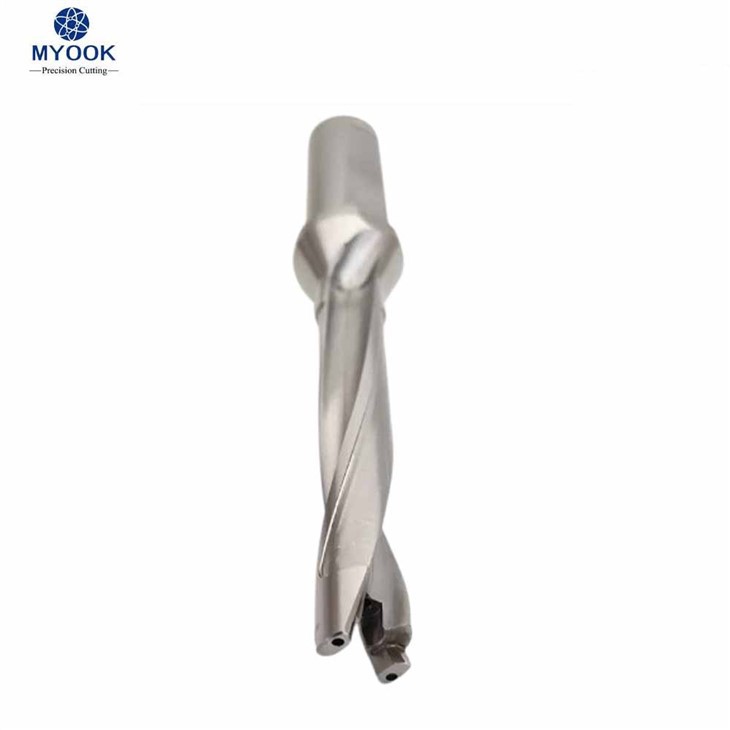

Lluniau Manwl
Paramedrau Cynnyrch
| Gorchymyn Rhif | Pen torri cymwys Dia.(mm) | Dimensiynau(mm) | Wrench | ||||
| d | D3 | L1 | Mae ls | D | |||
| QD080/089-12-5D-CA | 8.0~8.9 | 12 | 16 | 50 | 45 | 7.8 | 8-11.9 |
| QD090/099-12-5D-CA | 9.0~9.9 | 12 | 16 | 55 | 45 | 8.8 | |
| QD100/109-16-5D-CA | 10.0~10.9 | 16 | 20 | 60 | 48 | 9.8 | |
| QD110/119-16-5D-CA | 11.0~11.9 | 16 | 20 | 66 | 48 | 10.8 | |
| QD120/129-16-5D-CA | 12.0~12.9 | 16 | 20 | 71 | 48 | 11.8 | 12-16.9 |
| QD130/139-16-5D-CA | 13.0~13.9 | 16 | 20 | 77 | 48 | 12.8 | |
| QD140/149-16-5D-CA | 14.0~14.9 | 16 | 20 | 82 | 48 | 13.8 | |
| QD150/159-20-5D-CA | 15.0~15.9 | 20 | 25 | 88 | 50 | 14.8 | |
| QD160/169-20-5D-CA | 16.0~16.9 | 20 | 25 | 93 | 50 | 15.8 | |
| QD170/179-20-5D-CA | 17.0~17.9 | 20 | 25 | 99 | 50 | 16.8 | 17-20.9 |
| QD180/189-25-5D-CA | 18.0~18.9 | 25 | 32 | 104 | 56 | 17.8 | |
| QD190/199-25-5D-CA | 19.0~19.9 | 25 | 32 | 110 | 56 | 18.8 | |
| QD200/209-25-5D-CA | 20.0~20.9 | 25 | 32 | 115 | 56 | 19.8 | |
| QD210/219-25-5D-CA | 21.0~21.9 | 25 | 32 | 121 | 56 | 20.8 | 21-26 |
| QD220/229-25-5D-CA | 22.0~22.9 | 25 | 32 | 126 | 56 | 21.8 | |
| QD230/239-32-5D-CA | 23.0~23.9 | 32 | 42 | 132 | 60 | 22.8 | |
| QD240/249-32-5D-CA | 24.0~24.9 | 32 | 42 | 137 | 60 | 23.8 | |
| QD250/260-32-5D-CA | 25.0~26.0 | 32 | 42 | 143 | 60 | 24.8 | |
| modfedd | modfedd | modfedd | mm | mm | mm | mm | |
| QD5/16-11/32-1/2-5D-CA | 5/16~11/32 | 1/2 | 16 | 50 | 45 | 7.5 | 8-11.9 |
| QD23/64-25/64-1/2-5D-CA | 23/64~25/64 | 1/2 | 16 | 55 | 45 | 8.8 | |
| QD13/32-27/64-5/8-5D-CA | 13/32~27/64 | 5/8 | 20 | 60 | 48 | 9.9 | |
| QD7/16-15/32-5/8-5D-CA | 7/16~15/32 | 5/8 | 20 | 66 | 48 | 10.7 | |
| QD31/64-1/2-5/8-5D-CA | 31/64~1/2 | 5/8 | 20 | 71 | 48 | 11.9 | 12-16.9 |
| QD33/64-35/64-1/2-5D-CA | 33/64~35/64 | 5/8 | 20 | 77 | 48 | 12.6 | |
| QD9/16-37/64-1/2-5D-CA | 9/16~37/64 | 5/8 | 25 | 82 | 48 | 13.8 | |
| QD19/32-5/8-3/4-5D-CA | 19/32~5/8 | 3/4 | 25 | 88 | 50 | 14.5 | |
| QD41/64-21/32-3/4-5D-CA | 41/64~21/32 | 3/4 | 25 | 93 | 50 | 15.6 | |
| QD43/64-45/64-3/4-5D-CA | 43/64~45/64 | 3/4 | 25 | 99 | 50 | 16.7 | 17-20.9 |
| QD23/32-47/64-1-5D-CA | 23/32~47/64 | 1 | 32 | 104 | 56 | 17.6 | |
| QD3/8-25/32-1-5D-CA | 3/8~25/32 | 1 | 32 | 110 | 56 | 18.4 | |
| QD51/64-13/16-1-5D-CA | 51/64~13/16 | 1 | 32 | 115 | 56 | 19.6 | |
| QD53/64-55/64-1-5D-CA | 53/64~55/64 | 1 | 32 | 121 | 56 | 20.4 | 21-26 |
| QD7/8-57/64-1-5D-CA | 7/8~57/64 | 1 | 32 | 126 | 56 | 21.6 | |
| QD29/32-59/64-11/4-5D-CA | 29/32~59/64 | 11/4 | 42 | 132 | 60 | 22.4 | |
| QD61/64-31/32-11/4-5D-CA | 61/64~1/32 | 11/4 | 42 | 137 | 60 | 23.6 | |
| QD63/64-1-11/4-5D-CA | 63/64~1 | 11/4 | 42 | 143 | 60 | 24.4 | |
Manteision
- Sefydlog, Uchel-Drilio Effeithlonrwydd: Mae dyluniad anhyblyg yn cefnogi cyflymder cylchdroi uchel a chyfraddau porthiant mawr, gan hybu cynhyrchiant.
- Mewnosod Oes Estynedig: Mae llai o ddirgryniad yn amddiffyn ymylon torri, gan ymestyn oes offer.
- Newidiadau Cyflym: Mae dyluniad modiwlaidd yn symleiddio mewnosod amnewid, gan leihau amser segur.
